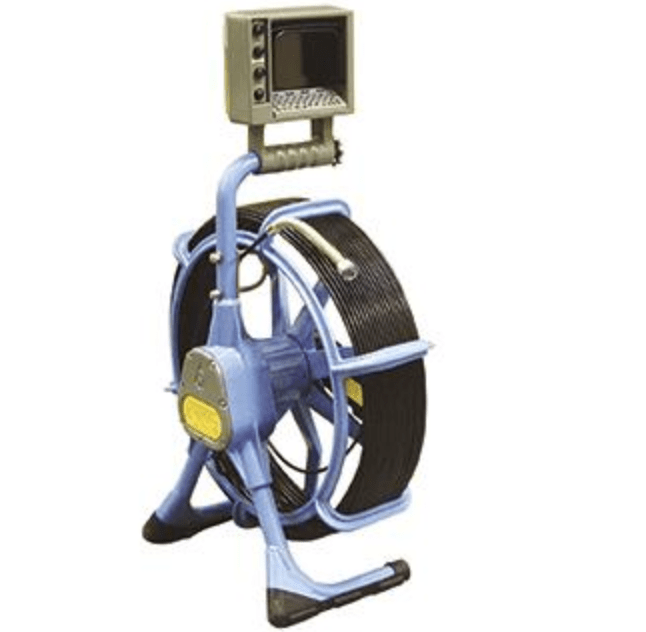

Pearpoint P374 Intrinsically Safe
Straight View Push Camera

Screen Shot 2020-03-24 at 12.49.29 PM
Screen Shot 2020-03-24 at 12.49.29 PM

Quick turnaround quote by calling

855-712-6360

Equipment Description

Pearpoint's P374 IS is an intrinsically safe Pushrod Sewer Camera System certified to EEX ia IIC T6 for Zone 0 Hazardous environments.

Pearpoint's P374 IS is an intrinsically safe pushrod system certified to EEX ia IIC T6 for Zone 0 Hazardous environments such as vessels or pipework within the chemical and petrochemical industries, landfill venting systems, natural gas supply infrastructure, etc. The surface equipment is IP55 rated allowing this system to be used in most types of weather conditions. The P374 IS system is compact and fully integrated making it very easy to transport around.

Request A Quote

Specifications

CAMERA & LIGHTHEAD

0.94" (24mm)

0.67" (17mm)

1.22" (31mm)

Approx. 1.6 kg (ORPHEUS 2) / approx. 1,85 kg (ORPHEUS 3)

100mA

CMOS

510 x 492

360TVL per picture height

3 lux

44°

21V max

IP68 11Bar (160psi)
CONTROL UNIT & COILER

46lbs (21kg)

Auto Sensing 110V - 240V or 12V DC

3W

IP55

Composite

Composite

35.4" (900mm)

23.6" (600mm)

12" (300mm)

FCC compliant
