Vizzaar 8 mm X 50' Long 4-way
Distal Tip Articulating Videoscope
Quick turnaround quote by calling
855-712-6360
Equipment Description

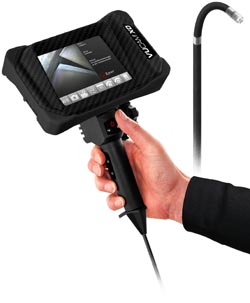

The robust videoscope with an up to 130° articulating video probe and high power LED illumination for industrial Remote Visual Inspection (RVI). The videoscope VUCAM® XO/XO+ provides you with a precise touch screen and a modern graphic user interface. With backbuffer recording, you won't miss any important inspection detail. When passing the important spot, you don't need to re-enter the application and search. Videoscope VUCAM® XO/XO+ is recording the last 15 seconds of your Remote Visual Inspection (RVI) by activating and stopping the recording. Save time on your videoscopy. The smart data management and the robust video probe of the videoscope VUCAM® XO/XO+ are enabling easy Visual Testing (VT).
Request A QuoteSpecifications
Water and pressure tested
Probe: 1.5 bar / 22 psi fully immersible over the full length | System: System housing IP 54 splash water and dust proof
Weight
1.5 kg / 3.3 lbs (1.7 kg / 3.7 lbs with battery), depending on probe length.
Shock & vibration
Vibration 3 grms random at 20Hz to 2 KHz, 10 min per axis; Shock 50 grms 11 ms half-sine three axis.
Temperature
Display: Storage -40°C (-40°F) to +85°C (+185°F); Operation -20°C (-4°F) to +70°C (+158°F) | Probe: Operating -10°C (14°F) to +80°C (176°F), in air
Manual
Full digital version on SD card, short guide hard copy.
Display dimensions in mm / inch
(H) 75 / 2.95“ x (W) 196 / 7.71“ x (D) 73 / 2.87“
